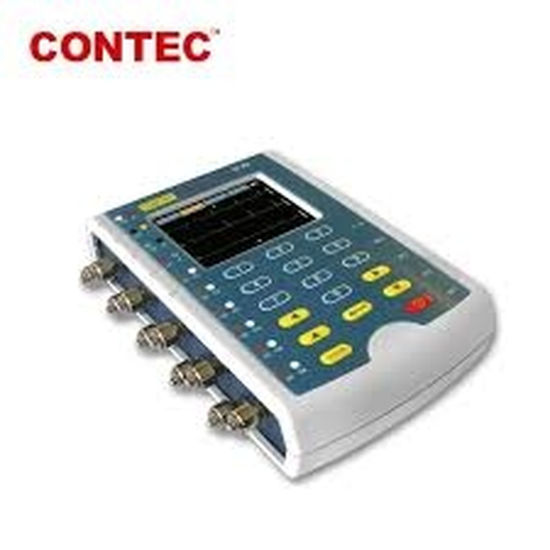

CONTEC MS400 CE Multiparameter IBP simulator

CONTEC MS400 CE Multiparameter IBP simulator DESCRIPTION MS400 Multiparameter Simulator is a portable,light weight device, features in small volume and It can simulate accurately 12-lead ECG, Respiration, Temperature, 2-channel IBP or 4-channel IBP. And it can be tested in where the monitor is used. User friendly and can be used on adults and infants. The MS400 has the following unique features;
SKU: RD1035
Call for pricing

Specification

  • Simulate 35 kinds of arrhythmia (including Atrial, Ventricular, Premature Beat and Conduction Defects) and pacemaker waveforms (including Asynchronous, Demand Occ Sinus, Demand Freq Sinus, A/V Sequential, Non Capture, Non Function).
  • Simulate four-channel IBP data.
  • Simulate respiration signal with adjustable respiration rate, impedance and baseline impedance, and three kinds of apnea data.
  • Simulate four kinds of temperature data.
  • Simulate square wave, triangle wave, pulse wave and sine wave with adjustable frequency.
  • Simulate standard ECG calibration, adult and pediatric ECG signal.
  • ECG waveform complied with the standard of ANSI/AAMI EC13-2002, AHA, MIT ECG database, other ECG database and user-defined waveform data stored in TF card can be displayed by the simulator and exported to the equipments to be tested.
  • Each waveform can be displayed by sliding the 3.5'' TFT touch screen, easy to operate.
  • Power supply: rechargeable lithium battery or linear adapter, which reduces interference.
  • Optional operation modes: keys and touch screen.
  • Dimension 18.86 cm(L)×12.50 cm(W)×4.32 cm(H)
  • Net weight about 1.4kg
