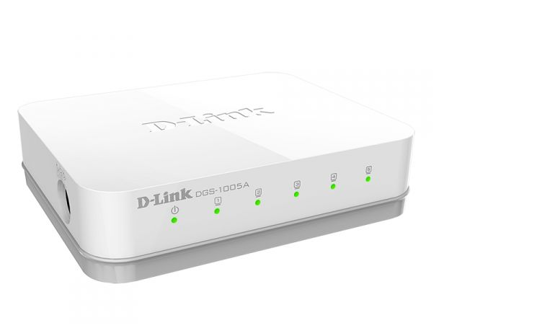

DGS-1005AEOL 5-Port Gigabit Switch

The DGS-1005A 5-Port Gigabit Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. It provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. An energy-efficient power adapter (Energy Star Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.

Be the first to review this product

SKU: RD0482

Call for pricing

Qty:

Device Interfaces

• Five 10/100/1000 Gigabit LAN ports

Functionality

Advanced Features

• Green Ethernet

• 10Gbps switching fabric

• Auto MDI/MDIX crossover for all ports

• Secure store-and-forward switching scheme

• Full/half-duplex for Ethernet/Fast Ethernet speeds

• IEEE 802.3x Flow Control

• Supports 9,216 Byte Jumbo Frames

• Supports IEEE 802.1p QoS (4 Queues, Strict Mode)

• Supports Cable Diagnostics Function

Standards

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)

• ANSI/IEEE 802.3 NWay auto-negotiation

• IEEE 802.3x Flow Control

• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol

• CSMA/CD

Data Transfer Rates

Ethernet:

• 10Mbps (half duplex)

• 20Mbps (full duplex)

Fast Ethernet:

• 100Mbps (half duplex)

• 200Mbps (full duplex)

Gigabit Ethernet:

• 2000Mbps (full duplex)

Transmission Method

• Store-and-forward

MAC Address Table

• 2K

MAC Address Learning

• Automatic Update

Packet Filtering/Forwarding Rates

• Ethernet: 14,880pps per port

• Fast Ethernet: 148,800pps per port

• Gigabit Ethernet: 1,488,000pps per port

RAM Buffer

• 128 KB per device

LED Indicators

• Per port: Link/Activity/Speed

• Per device: Power

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports

Dimensions

• 91 x 73 x 22mm

Weight

• 330 grams

Power

• 5V/1A Power Adapter

Power Consumption

• DC input: 2.37 watts, AC input: 3.9 watts

Temperature

• Operating: 0 to 40°C

• Storage: -10 to 70°C

Humidity

• Operating: 10% to 90% non-condensing

• Storage: 5% to 90% non-condensing

MTBF

• 1,261,786.896 hours

Certifications

• CE class B

• FCC class B

• ICES-003 Class B

• VCCI class B

• C-Tick

• Anatel

• CCC

• cUL

• CB

• LVD
