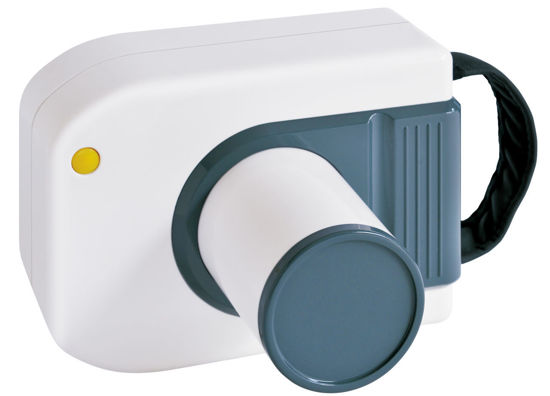

Handheld High frequency Dental X-ray Unit ADM-10P ARI

Our Handheld High Frequency Dental X-ray Unit ADM-10P provides high frequency imaging of the teeth, mostly employed by dentist to evaluate patient's oral health.This X-rays is used for high precision but with low levels of radiation to capture images of the interior of the teeth and gums. This can help your dentist to identify dentition anomaly. It is ergonomically design to be held by the physician or the operator.
SKU: RD1043
Call for pricing


This portable dental X-ray unit is high frequency machine.

-It can connect with sensor.

-It uses high frequency and DC international power supply.

-All of the components installed in the central PC board concentrated.

-The body is small, lightweight and nearly no radiation.

-It has excellent image quality, portable storage, save more space.

-Shock, set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.

-There are also manual buttons installed on the surface of shell, as well as batteries and charges.

-This unit mainly suitable for oral pre-treatment for learning internal organizational structure, root depth and so on is indispensable in daily life clinic equipment, especially for dental implant surgery.

Technical Specifications

Frequency: 32KHZ

Tube voltage: 60KV

Tube current: 1.5mA

Exposure time: 0.02-4sec

Leak radiation: Outside one meter≤0.002mGy/h

(National standard: 0.25mGy/h)

Ambient temperature: 5℃~40℃

Distance from skin to cone: 130mm

Tube focus: 0.3mm*0.3mm

Output voltage: DC16.8V

Battery: DC14.8V, 6400mAh

Relative temperature: <75%RH

Optional color: grey, pink, light green
