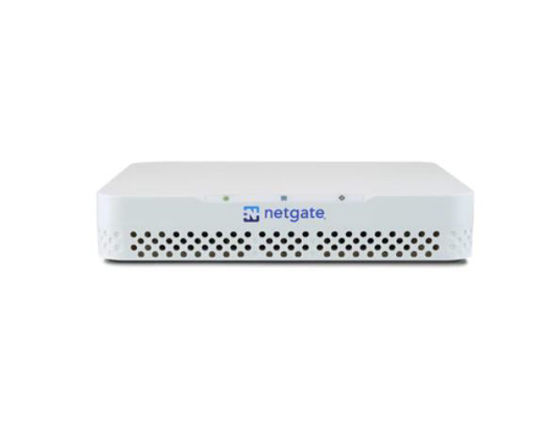

Netgate 4100 BASE pfSense+ Security Gateway

The Netgate® 4100 with pfSense® Plus software is one of the most versatile security gateways in its class. It combines the power of a Dual-Core Intel® Atom® C3338R Core CPU with integrated QuickAssist & AES-NI, and 4 GB of memory for a snappy user experience, delivering over 8.15 Gbps of L3 routing across six independent - (2) 1 GbE and (4) 2.5 GbE - flexible WAN/LAN ports.

Be the first to review this product

Configuration

Call for pricing

Qty:

The Netgate 4100 is ideal for pro-home, small/medium businesses, or edge deployments that require flexible port configurations to support 1 to 2.5 Gbps WAN capabilities across (2) RJ45 copper / SFP fiber Combo WAN ports and (4) discrete, unswitched 2.5 Gbps RJ-45 ethernet LAN ports - all in a silent desktop form factor.

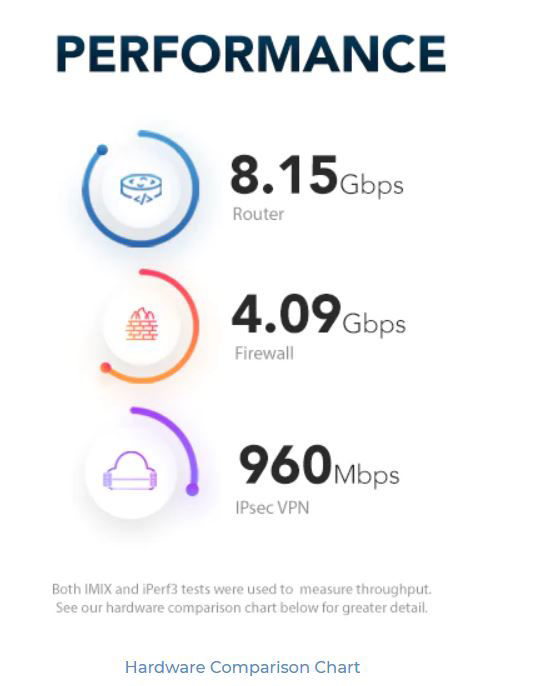

L3 Forwarding

IPERF3 Traffic: 8.15 Gbps
IMIX Traffic: 3.24 Gbps

Firewall
(10k ACLs)

IPERF3 Traffic: 4.09 Gbps
IMIX Traffic: 1.40 Gbps

IPsec VPN
(AES-GCM-128 w/QAT)

IPERF3 Traffic: 960 Mbps
IMIX Traffic: 312 Mbps

Netgate 4100 performance tests conducted with pfSense Plus software version 22.01
