Pipe Clamp FRS 15 - 19 M8/M10 - 100pcs packed

Features - Sound insulation insert. Two screws allow for ideal adaptation to the outer pipe diameter. Loss protection of screw. Fire protection test R120.

Be the first to review this product

SKU: RD00023

Call for pricing

Qty:

fischer Pipe clamp FRS 15 - 19 M8/M10

Product Description -

The fischer pipe clamp FRS 15-19 M8/M10 for 3/8" size enables simple assembly of pipelines.
The fire inspection report guarantees objectively tested functional safety.

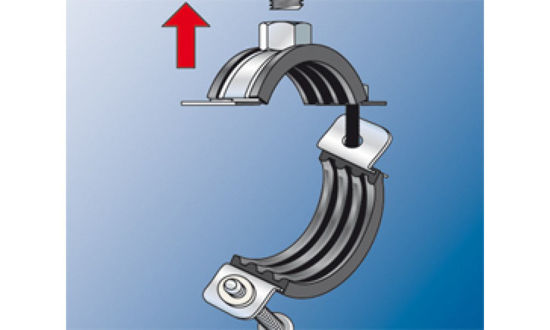

The two screws allow for ideal adaptation to suit the outer pipe diameter.
Sound insulation insert ensures noise reduction and prevents corrosion.
Connecting nut with combination thread M8 / M10 for holding threaded rods or hanger bolts.
Pipe clamp screws with loss protection.

Advantages/benefits

The fire test report guarantees independently tested functional safety.
The two screws allow an easy adjustment to suit the outer pipe diameter.
The combination connecting nut with thread M8/M10 enables optimised mounting choices.
The sound insulation insert offers noise protection and prevents contact corrosion.
The screw's safety feature ensures trouble-free installation.

Properties

Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130
Zinc plating: electro zinc-plated, 5 - 9 µm

Applications

Secure fixing for pipes with threaded rods or stud screws (also when there are fire protection requirements)

Technical Data

Thread	A	M 8 / M 10
Size		3/8"	[inch]
Clamping range	D	15 - 19	[mm]
Width B	B	59	[mm]
Height H	H	43	[mm]
Width x thickness clamp band	b x s	20 x 1.25	[mm]
Height Z	Z	29	[mm]
Locking screw		M 6
Max. recom. static load (centr. tension)	Nrecom.	1.00	[kN]
